Kirchhoff-EQ
Erstveröffentlichung: 04.11.2021

Kirchhoff-EQ


sehen

Full Product

AAX native, AU, Mac, VST, Win
Download Größe: 142 MB

Download
nach erhaltener Zahlung
$ 149.00

 7.45BestCoinBestCoin Bonus

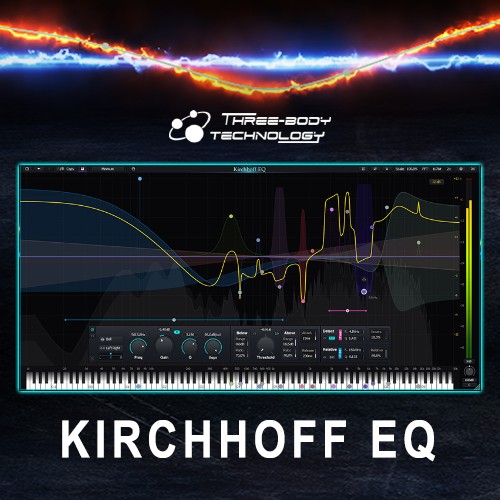

Kirchhoff EQ Banner

Ultimatives EQ-Plugin mit hervorragender Dynamikverarbeitung und Vintage-EQ-Styles

Kirchhoff-EQ ist das ultimative parametrische 32-Band-EQ-Plugin, das für professionelle Anwendungen entwickelt wurde. Es verfügt über eine verfeinerte Klangqualität, analog angepasste Kurven, 11 Filtertypen mit stufenlos einstellbarer Form und 30 Vintage-EQ-Typen, die realen Geräten nachempfunden sind. Die eingebauten dynamischen Bearbeitungsfunktionen sind sehr flexibel und haben eine extrem geringe Verzerrungsneigung. All dies macht den Kirchhoff-EQ zu einem modernen Gerät der nächsten Generation.

Weitere Details in englischer Sprache:

  • Ultimate Sound Quality - Through originally developed "Robust Nyquist-matched Transform", Kirchhoff-EQ has made digital-domain frequency response more approximate to its analogue counterparts without high frequency cramping as in regular IIR(infinite impulse response) equalizers. This technique is applied on all filter types in Kirchhoff-EQ.

  • High-Precision Processing - 64-bits is mandatory and it's not negotiable. The internal processing of Kirchhoff-EQ is always in 64-bits (or 117-bits), regardless host DAW's current working precision.

  • Psychoacoustic Adaptive Filter Topologies - All linear filter structures should have same sound on paper. However in real-world application, round-off errors make every filter structure sound differently: some better in low frequency, some better in high frequency. A technology called "Psychoacoustic Adaptive Filter Topologies" has been deployed in Kirchhoff-EQ. Filter structures change themselves to a "best fitting" state along with corresponding band frequency changes, making optimized sound quality in both low and high frequency.

  • Switchable Ultra-High 117-bits Processing - Since there's already 64-bits, why not go further? Kirchhoff-EQ uses a technique called "Double-Double" to make precision of internal processing reach 117 bits! This is the first equalizer in the world to reach such precision. You can switch between 64-bits and 117-bits at any time. It satisfies the most demanding ears.

Kirchhoff EQ GUI !

Filter Types

11 Unique Filter Types

  • low pass, high pass, band pass: continuously variable from 0 dB/oct to 96 dB/oct;
  • bell, notch: continuously variable from 12 dB/oct to 96 dB/oct;
  • low shelf, high shelf, tilt shelf: continuously variable from 6 dB/oct to 96 dB/oct;
  • flat tilt and flat top;
  • sword: has sharper slope than bell, specifically designed to "dig" out resonances.
  • Continuously variable slopes Filters - The slope of most filter types can be continuously changed from 0 dB/oct, 6 dB/oct or 12 dB/oct up to 96 dB/oct. Would you like to try a 8.125 dB/oct highpass?

30 Filter Types Modeled from Historic Vintage EQs!

Get vintage and modern at same time! We modeled 8 vintage EQ hardware units into Kirchhoff-EQ, in total of 30 EQ types. Benefit from Robust Nyquist-Matched Transform, every EQ type precisely matches the original hardware and won't cramp near Nyquist frequency. For a further step, unlike the original hardware that only allows to choose between several frequency positions, we modified the DSP model to make adjustable frequency points for all these types! Every type in these models can be used together with regular EQ types or other modeled types, and can be applied with dynamic functions (except lowpass and highpass types). This brings you more freedom and convenient operations.

Zero-Latency/Analogue/Linear/Mixed Phase Modes

The phase mode of Kirchhoff-EQ is switchable between zero-latency mode, analogue mode, linear phase mode and mixed phase mode. To meet all your Phase relationship needs.

Kirchhoff GUI 2

  • Mixed Phase Mode - The zero-latency and linear phase mode has very different sound. Kirchhoff-EQ provides a mixed mode that uses zero-latency when band frequency point is low, and uses linear phase when it is high. Each band could smoothly changed between minimum and linear phase mode according to their frequency.

  • Flexible Dynamic EQ Functions - Dynamic functions in Kirchhoff-EQ are not just a bonus, They provide the richest functions you have ever seen. Enabling you to achieve unlimited possibilities of dynamic EQ functions. All filter types (except low/high pass, band pass and notch), even these vintage-modelled ones, can be applied with dynamic functions.

  • Harmonic Shifted Envelope - All dynamic EQ have odd- and non-integral harmonics, that’s the laws of physics. By using advanced DSP techniques, Kirchhoff-EQ now "shift" most energy of odd-harmonics into even-harmonics, making an ultra-low noise floor and enhanced sound. Now you can use dynamic functions with freedom without worrying about smashing your sounds.

  • Two-Way Threshold - You can now control how dynamics react to the portion of signal above/below threshold concurrently. In Kirchhoff-EQ, the "Above" stage works as a compressor or upward-expander, and the "Below" stage works as an expander or upward-compressor. For example, you can raise the signal below the threshold AND compress the signal above the threshold to "stablize" a band.

Detect/Relative Envelope Detection

Let us imagine a simple case: we are playing an audio clip in which sounds around 1khz are 9 dB. You may think "The 1khz range is over powering, We should reduce the 1khz But we should also consider the overall level. If the whole audio is 30 dB, you would not feel that 1khz is too much, instead you may feel it's not enough. The better criteria to determine whether a band's volume is high or low is its relative portion in overall volume envelope, instead of only its absolute dB value.

Thereby we introduce "Detect/Relative Envelope Detection" in Kirchhoff-EQ. The dynamics are affected by both current frequency band and relative portion to a "Relative" band. The contribution of Relative Envelope Detection to dynamics is also adjustable: when set to 0%, it degrades as a normal dynamic EQ; and when set to 100%, the amount of dynamics is fully calculated from the relative portion.

The “detect” band is set according to the frequency and Q of the band by default, “Relative” is the whole audio envelope by default. But they can be set freely.

The detecting band and relative band have a freely adjustable frequency point and Q value. Or enable “S.C.” mode to make “Detect” or “Relative” to a sidechain signal.

Kirchhoff GUI 3

Onsets Detection Mix

By turning on "Onsets" mix, the envelope detector reacts more specifically to transients inside of the envelope. So you can fine-tune the tone of transients. For better adjustability, you can "mix" envelope detector and onsets detector. For example, you can compress the high frequencies just a little bit whilst compressing the suddent increase of high frequencies more aggressively.

More Details

  • Spectrum Grab - Kirchhoff-EQ allows you to locate a specific frequency peak rapidly by directly grabbing on spectrum.

  • Switchable 2x Oversampling - Kirchhoff-EQ has builtin 2x oversampling that can be freely turned on/off.

  • Per-Band Directional EQ - Each band can be set as mid/side or left/right processing, so you can pan a band Left or right, or adjust Mid/Side, or just left, right, mid and side separately.

  • Extreme CPU Optimization - Through hand-written assembly code commands, Kirchhoff-EQ achieves ultra low CPU workload. Never fear to use hundreds of instances!

  • Low Clicking Noise - We made our best to reduce clicking noises while performing parameter changes, type switching, bypass on/off and enter/leave solo listening mode.

  • GPU Accelerated GUI - We are dedicated to smoothness in oprerating, speed to open/close UI and operation latency. To achieve better rendering efficiency, the GUI of Kirchhoff-EQ is rendered using OpenGL.

  • Visual-Comfort Spectrometer - The spectrum panel of Kirchhoff-EQ is carefully optimized for visuals and is freely configurable. You can adjust its decibel range, refresh speed, resolution, frequency scaling and brightness. You can even directly specify its center frequency.

  • User-Customizable Settings - How to trigger a war on forum? Ask them if a Q value shall increse/decrease when mouse wheels up. To help speed-up your workflow, Kirchhoff-EQ provides a rich set of options allowing you to cast it to your own handy tool.

Kirchhoff GUI Screen 4

Other Features:

  • solo mode
  • phase invert
  • automatic gain compensation
  • gain scale
  • adjustable spectrum center
  • resizable interface
  • full-screen mode
  • MacOS Retina and Windows high-DPI support
  • piano roll display
  • pre-EQ/post-EQ/both spectrum
  • multi-band selection
  • multiple display ranges: 3dB, 6dB, 12dB, 18dB, 30dB
  • output level meter
  • presets and user-defined defaults
  • undo/redo and A/B switching
  • VST2, VST3, Audio Units, AAX Native (64-bit)

Lantency

  • Minimum-Phase: 0.
  • Analog Phase: 63 sample points, about 1.4ms (44100Hz sample rate).
  • Mix Phase: 63-2047 sample points, depends on band frequency point.
  • Linear Phase: 2047, 4095, 8191, 16383, 32767 sample points.

 Verwandte Produkte


 Systemanforderung

Mac:

  • macOS 10.9 oder höher
  • 64 bit
  • Intel oder Apple M1 CPU
  • RAM: 4GB

Windows:

  • Windows 7 oder höher
  • 32 bit & 64 bit
  • Intel oder AMD CPU mit SSE 4.1
  • RAM: 4GB

Zusätzliche Anforderungen mit bestimmten Hosts:

  • Logic Pro X oder höher (Logic 9 wird nicht unterstützt)
  • In Cakewalk Sonar 8.5 wird lediglich 32-Bit VST unterstützt

Produkt Aktivierung:
Zur Autorisierung / Aktivierung des Produktes benötigen Sie eine Internet Verbindung.
